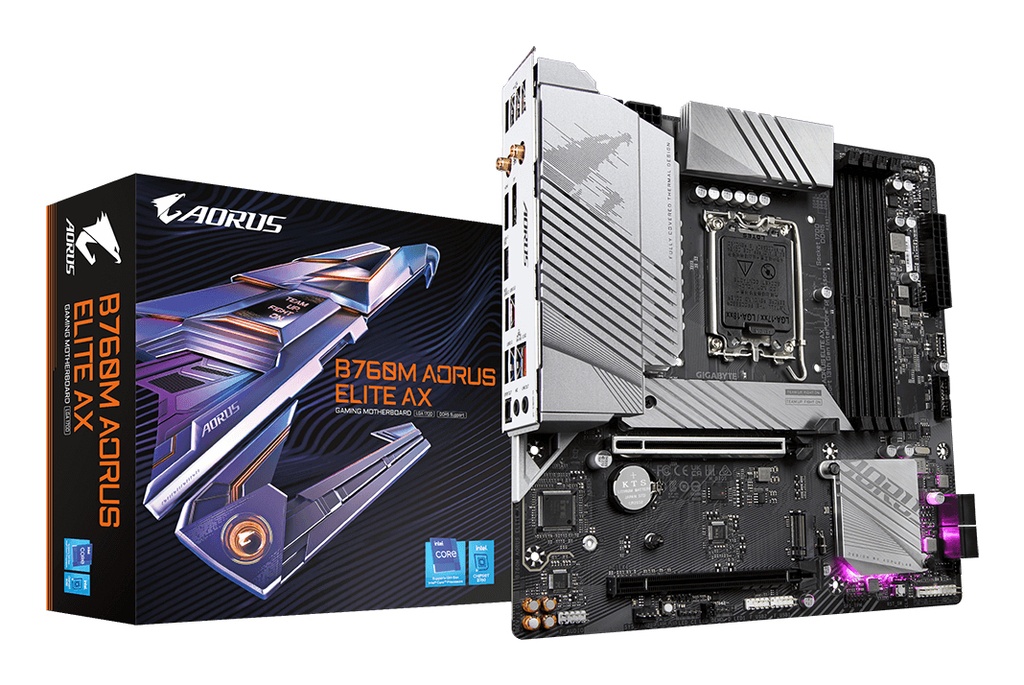

Gigabyte B760M AORUS ELITE AX

• Supported memory types
  • DDR5-SDRAM
• Number of memory slots
  • 4
• Memory slots type
  • DIMM
• ECC сompatibility
  • Non-ECC
• Supported memory clock speeds
  • 4000,4800,5300,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800 MHz
• Supported memory clock speed (max)
  • 7800 MHz
• Supported memory module capacities
  • 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
• Unbuffered memory
  • Yes
• Maximum internal memory
  • 256 GB
• Audio output channels
  • 7.1 channels
• PC health monitoring
  • Fan, Temperature, Voltage, Water cooling
• Motherboard form factor
  • micro ATX
• Motherboard chipset family
  • Intel
• Power source type
  • ATX
• Product colour
  • Black
• Component for
  • PC
• Windows operating systems supported
  • Windows 10, Windows 11
• Width
  • 244 mm
• Depth
  • 244 mm
• Height
  • 35 mm
• Bundled software
  • Norton Internet Security
• Package width
  • 270 mm
• Package depth
  • 268 mm
• Package height
  • 68 mm
• Package weight
  • 1.77 kg
• Cables included
  • SATA
• Products per shipping (inner) case
  • 1 pc(s)
• Warranty period
  • 3 year(s)
• Country of origin
  • China
• Battery type
  • CR2032
• Batteries included
  • Yes
• DirectX version
  • 12.0
• Motherboard chipset
  • Intel B760 Express
• HDMI ports quantity
  • 1
• DisplayPorts quantity
  • 1
• Headphone outputs
  • 1
• HDCP
  • Yes
• Wi-Fi
  • Yes
• Microphone in
  • Yes
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • 3
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
  • 1
• Ethernet LAN (RJ-45) ports
  • 1
• Parallel processing technology support
  • CrossFireX
• Processor socket
  • LGA 1700
• Compatible processor series
  • Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
• Supported processor sockets
  • LGA 1700
• Maximum resolution
  • 4096 x 2304 pixels
• Processor manufacturer
  • Intel
• Ethernet interface type
  • 2.5 Gigabit Ethernet, 5 Gigabit Ethernet
• WLAN controller model
  • Intel Wi-Fi 6E AX211
• Bluetooth
  • Yes
• Bluetooth version
  • 5.3
• Top Wi-Fi standard
  • Wi-Fi 6E (802.11ax)
• Wi-Fi standards
  • 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
• Ethernet LAN
  • Yes
• Lithium weight per battery
  • 0.07 g
• Number of battery cells
  • 1
• Battery weight
  • 3 g
• Battery technology
  • Lithium-Manganese Dioxide (LiMnO2)
• Supported storage drive types
  • HDD & SSD
• Supported storage drive interfaces
  • M.2, SATA III
• Number of HDDs supported
  • 4
• Number of storage drives supported
  • 6
• RAID support
  • Yes
• RAID levels
  • 0, 1, 5, 10
• USB 2.0 connectors
  • 2
• USB 3.2 Gen 1 (3.1 Gen 1) connectors
  • 1
• Number of SATA III connectors
  • 4
• Front panel audio connector
  • Yes
• Front panel connector
  • Yes
• ATX Power connector (24-pin)
  • Yes
• CPU fan connector
  • Yes
• Number of chassis fan connectors
  • 3
• Peripheral (Molex) power connectors (4-pin)
  • 1
• EPS power connector (8-pin)
  • Yes
• TPM connector
  • Yes
• RGB LED pin header
  • Yes
• USB 3.2 Gen 2 (3.1 Gen 2) connectors
  • 1
• Total number of SATA connectors
  • 4
• S/PDIF out connector
  • Yes
• Thunderbolt headers
  • 2
• USB 2.0 ports quantity
  • 4
• WiFi-AP antenna jack
  • 2
• USB 3.2 Gen 2x2 Type-C ports quantity
  • 1
• Number of M.2 (M) slots
  • 2
• 1st M.2 largest key size
  • 2280
• 1st M.2 highest PCI Express generation
  • 4.0
• 2nd M.2 largest key size
  • 22110
• 2nd M.2 highest PCI Express generation
  • 4.0
• PCI Express x16 (Gen 4.x) slots
  • 1
• BIOS type
  • UEFI AMI
• BIOS memory size
  • 256 Mbit
• ACPI version
  • 5.0
• Clear CMOS jumper
  • Yes
• Desktop Management Interface (DMI) version
  • 2.7
• System Management BIOS (SMBIOS) version
  • 2.7
